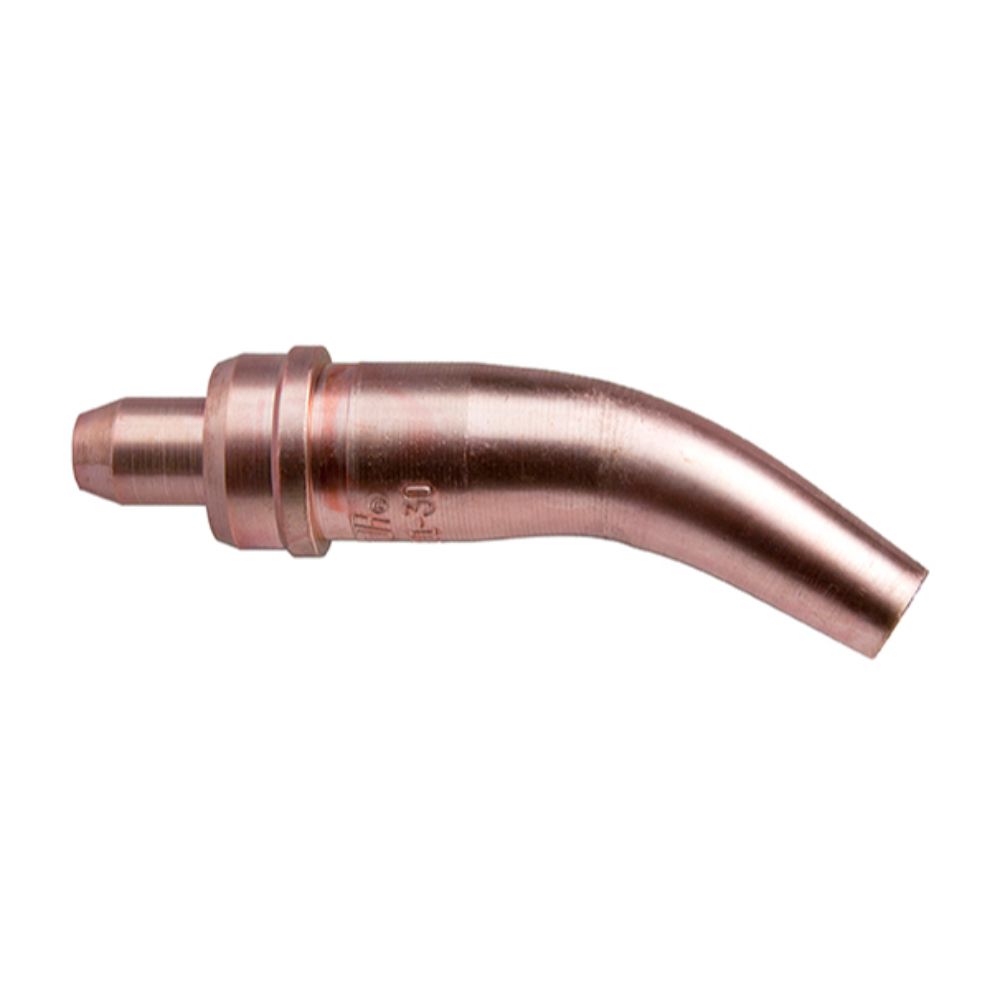

Victor Type 101-30 Acetylene Cutting Tip Series 1
Acetylene Cutting Tips – Type 101-30 for manual or mechanized applications with a 30 degree bend
Please contact us for further inquiries including product variety, replacement parts and product details.
SKU: wsa0077
Category: Cutting Nozzle
Tags: Cutting Machine, Cutting Nozzle, cutting tip, Cutting Torch, gas cutting equipment, Gouging Nozzle, gouging tip, torch handle, welding accessorie, welding nozzle, welding torch
Description
Features
- General purpose
- Hand and machine torch cutting 30°, with torch perpendicular
Industries
- Industrial and General Fabrication
- Structural Steel Fabrication
- Repair and Maintenance
- Light Fabrication
Specifications
Fuel Specifications
Gas Pressure – Acetylene | 3-5 psig |
Gas Pressure – Cutting Oxygen | 25-30 psig |
Gas Pressure – Preheat Oxygen | 3-5 psig |
Part Number | 0330-0198 |
Total Acetylene Consumption | 5-8 cfh |
Total Oxygen Consumption | 55-60 cfh |
Total Preheat Oxygen Consumption (imp) | 5-9 cfh |
Gas Pressure – Acetylene | 3-5 psig |
Gas Pressure – Cutting Oxygen | 30-35 psig |
Gas Pressure – Preheat Oxygen | 3-6 psig |
Part Number | 0330-0198 |
Total Acetylene Consumption | 6-10 cfh |
Total Oxygen Consumption | 60-65 cfh |
Total Preheat Oxygen Consumption (imp) | 7-11 cfh |
Gas Pressure – Acetylene | 3-5 psig |
Gas Pressure – Cutting Oxygen | 30-35 psig |
Gas Pressure – Preheat Oxygen | 4-7 psig |
Part Number | 0330-0199 |
Total Acetylene Consumption | 8-13 cfh |
Total Oxygen Consumption | 80-85 cfh |
Total Preheat Oxygen Consumption (imp) | 9-14 cfh |
Gas Pressure – Acetylene | 3-6 psig |
Gas Pressure – Cutting Oxygen | 35-40 psig |
Gas Pressure – Preheat Oxygen | 4-9 psig |
Part Number | 0330-0284 |
Total Acetylene Consumption | 10-16 cfh |
Total Oxygen Consumption | 140-150 cfh |
Total Preheat Oxygen Consumption (imp) | 11-18 cfh |
Operating Specifications
Average Kerf Width | .06 in. |
Cutting Speed | 24-28 in./min |
Metal Thickness | 3/8 in. |
Part Number | 0330-0198 |
Tip Size | 0 in. |
Average Kerf Width | .06 in. |
Cutting Speed | 20-24 in./min |
Metal Thickness | 1/2 in. |
Part Number | 0330-0198 |
Tip Size | 0 in. |
Average Kerf Width | .07 in. |
Cutting Speed | 17-21 in./min |
Metal Thickness | 3/4 in. |
Part Number | 0330-0199 |
Tip Size | 1 in. |
Average Kerf Width | .09 in. |
Cutting Speed | 15-19 in./min |
Metal Thickness | 1 in. |
Part Number | 0330-0284 |
Tip Size | 2 in. |
